Mag-FLEX - Flexible Probe for Vertical Tanks

Mag-FLEX

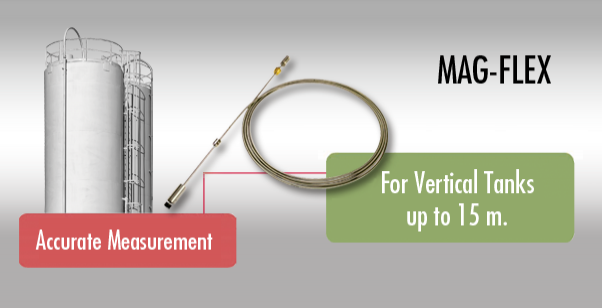

The flexible Probe Mag-FLEX is ideal for measuring liquid stocks in vertical tanks up to 15m length.

When connected to the Veeder-Root Systems, all the management and inventory control can be automatic, allowing an efficient remote and local stock control.

Once the Mag-FLEX Probe offers a high level of accuracy and reliability, it is designed for establishments that gather liquids in high volume tanks as basis for fuel distribution depots, marine terminals, aviation fueling installations, food, beverage and pharmaceutical industries.

It’s also recommended for high volume measurement of petroleum products, since it drives low electricity conductivity.

The Mag-FLEX Probe has a flexible corrugated design, which allows it to be wrapped up and packed in a compact way, guaranteeing low cost and easy transportation to the top of the tank where it will be installed.

Know more about the Flexible Mag-FLEX Probe and its Specs.

Know the main benefits of the Flexible Mag-FLEX Probe.

EASY TO INSTALL

  • After the Mag-FLEX Probe has been installed, the corrugated shaft is vertical oriented, maintaining its operational position to the determined weight installed in its lower end and to the magnet that holds itself into the tank basis.
  • The product measuring float registers precisely the changes in the tank level, and the water level measuring float, when installed, registers the volume of existing water. The Mag-FLEX probe operates with magnetostrictive measuring technology.

ADVANTAGES

  • Veeder-Root proven quality and reliability, the market leader in fuel level measurements systems.
  • Low transportation cost.
  • Simple installation, with no need of hiring lifting services.
  • Doesn’t require tank degassing for probe installation and maintenance.
  • Uses a single tank entry for level, temperature and water measurement.
  • A single measuring system can be used for subterraneous and aerial tanks.
  • Connects to other devices for a better stock management.
  • Reduces risk exposure by avoiding operator access in hazardous area and working at heights.

Know more about the Flexible Mag-FLEX Probe and its Specs.

SPECS

  • Magnetostrictive measuring technology
  • Consistent and precise measuring of product level
  • Temperature compensation
  • Automatic delivery detection
  • Water detection (optional)
  • Alarms programmable per user
  • Flexible and lightweight probe, easy to transport and install
  • Probe length up to 15 m, customized according to the user needWeight/magnet assembly constructed at the bottom of the probe, ensuring its vertical installation.

PRODUCT MEASUREMENT

  • Height accuracy: ± 2 mm
  • Repeatability: ± 0.5 mm
  • Minimum product level reading: 185 mm
  • Float size: 43 mm, Ø 1½"

WATER MEASUREMENT

  • Height accuracy: ± 3 mm
  • Repeatability: ± 0.5 mm
  • Minimum water level reading: 140 mm
  • Float size: 43 mm, Ø 1½"

TEMPERATURE MEASUREMENT

  • Measuring Range: - 40°C a + 85°C
  • Accuracy: ± 1.5°C
  • Repeatability: ± 0.5°C
  • Resolution: 0.001°C

INSTALLATION DETAILS

  • Length: up to 15 m tank height
  • Tank adapter/tank inlet: R 1½" BSP screw-in unit
  • Adjustment height range : ± 250mm (approximate)
  • Electrical connection: M12 conector
  • Protection class: IP68

 SENSOR MATERIALS

  • Probe Canister: Stainless steel 303
  • Rigid shaft sections: Stainless steel 304
  • Corrugated flexible shaft and floats: Stainless steel 316 Ti
  • Tank adaptor and weight: Brass
  • Magnet casing: Conductive plastic

GENERAL INFORMATION

  • Optional: tank adaptor and weight made of stainless steel
  • Certifications: UL, ATEX, IECEx

VEEDER-ROOT AUTOMATIC TANK GAUGE SYSTEMS SPECS

Maxum Product Hight

  • TLS-450, TLS-350R, TLS-350, TLS-300, ProPlus: up to 15 m
  • TLS-2, TLS-2P: 9.9 m

Maximume Volume Capability

  • TLS-2, TLS-2P, TLS-350R, TLS-350, TLS-300, ProPlus: 984,100 liters
  • TLS-450: 7 digits

Probe Maximum Capacity per TLS Console TLS

  • TLS-2, TLS-2P: 6 probes
  • TLS-300, ProPlus : 8 probes
  • TLS-350R, TLS-350: 16 probes
  • TLS-450: 32 probes


The success of your business must be supported by solutions and technologies at your fingertips. You need a partner. Someone who listens to you. Someone who can meet your needs, your customers' needs, and your financial needs. We have all the products and services you are looking for. Count on us to help you and contact us for further information .

Gilbarco Veeder-Root reserves the right to change one or more specifications of its fuel pumps with no prior notice whenever improvements are made. Be sure to check the current product specifications at the time of purchase.
